Every command.

extrude#

Raise a 2D profile into a solid. A filled profile is the default; wall gives its outline a thickness instead, twist and size turn and resize it as it rises, apex runs the sides towards a point, and to runs them to another shape.

profile | extrude height [wall thickness [inside | outside]] [twist degrees] [size factor] [apex [x y [z]] | to top]

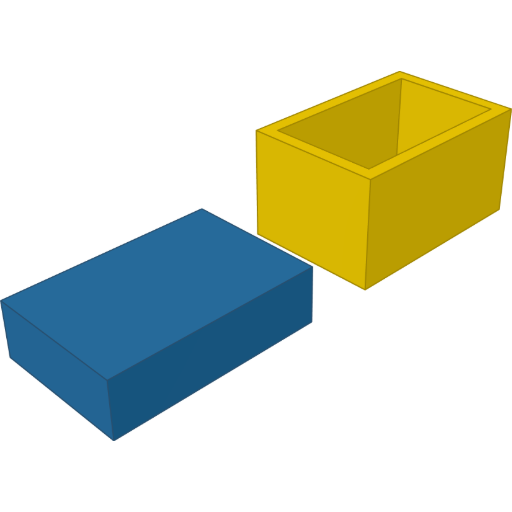

A filled profile and an open wall

color steelblue rect 30 20 | extrude 8
@right 10 color gold
rect 30 20 | extrude 16 wall 2 inside

open in editor

A filled path closes its subpaths. With wall, open paths stay open. A wall has no bottom; use shell for a vessel with a floor.

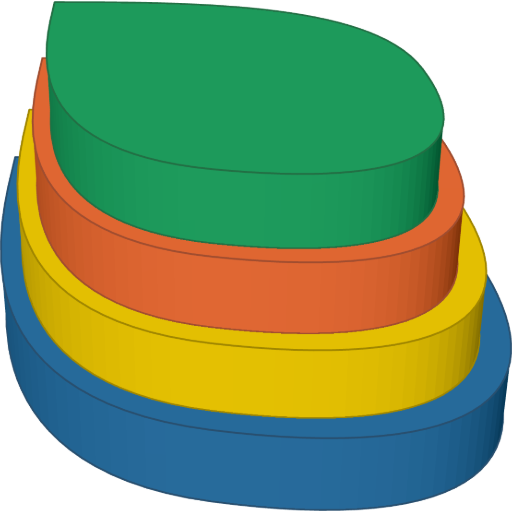

Face references as profiles

color steelblue path "M24 4C16 12 4 24 12 36 20 48 28 48 36 36 44 24 32 12 24 4Z" | extrude 5
color gold #top | extrude 5 | scale 0.9
color coral #top | extrude 5 | scale 0.9
color mediumseagreen #top | extrude 5 | scale 0.9

open in editor

Face references such as #top can be used as profiles.

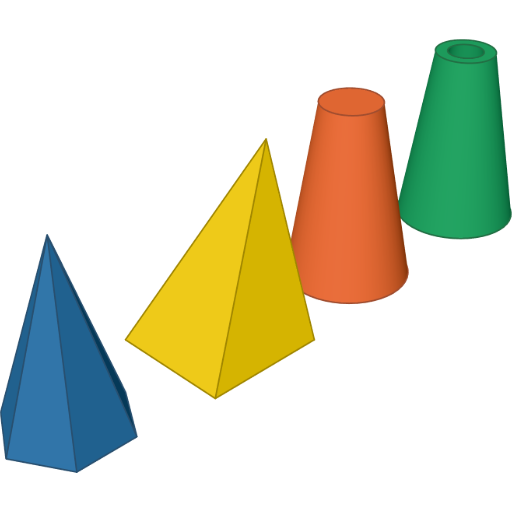

A point, a leaning point, and a frustum

!@right 8
color steelblue polygon 6 20 | extrude 30 apex [0 0]
color gold rect 20 20 | extrude 30 apex [10 0]
color coral circle 20 | extrude 30 apex [0 0 60]
color mediumseagreen circle 20 | extrude 30 wall 2 inside apex [0 0 60]

open in editor

The apex is a point in the profile's own frame, so apex [0 0] stands the point over a circle's centre or a path's origin. Where the outline shrinks below the wall's thickness, the wall closes over into solid; a long outline that does so all along its length, such as text walled to a point, is refused.

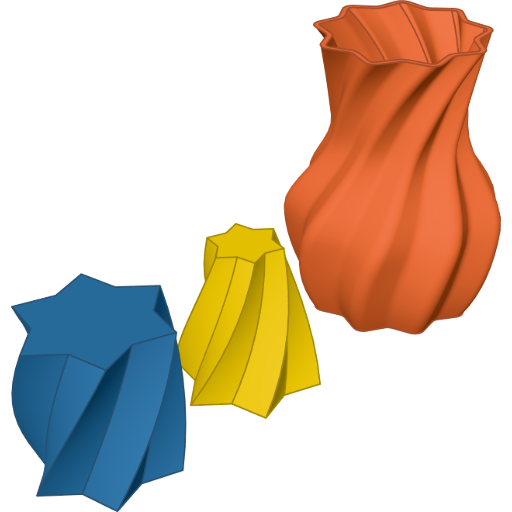

Turned, narrowed, and a vase that swells

!@right 8
color steelblue star 6 40 28 | extrude 40 twist 60
color gold star 6 40 28 | extrude 40 twist 60 size 0.5
color coral star 9 50 40 | round 3 | extrude 80 twist [0 20 80] size [1 1.3 0.8 1] wall 1.5 inside

open in editor

twist and size work about the profile's own origin, as a | rotate or | scale of the shape would. One value is the top's, reached evenly; a list is the value at each of several evenly spaced levels.

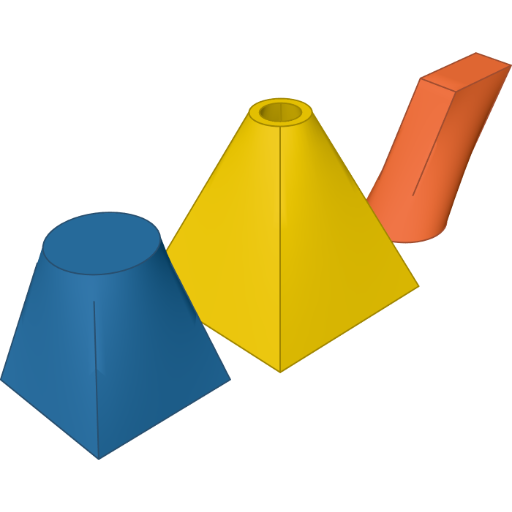

Square to round, a funnel, and a leaning top

!@right 8
color steelblue rect 30 30 | extrude 30 to circle 20
color gold rect 40 40 | extrude 40 wall 2 inside to circle 12
color coral circle 20 | extrude 30 to polygon points [10 -5] [30 -5] [30 5] [10 5]

open in editor

With to, every corner of either outline is a corner of both, so the base keeps its corners and the top its curve. A wall is its thickness at the base and at the top and runs straight between, open at both ends.

revolve#

Sweep a profile around an axis. The optional diameter is the circular path of the profile's origin, not the outside diameter of the finished solid.

profile | revolve [diameter] [angle degrees] [start degrees] [about axis] [shrink]

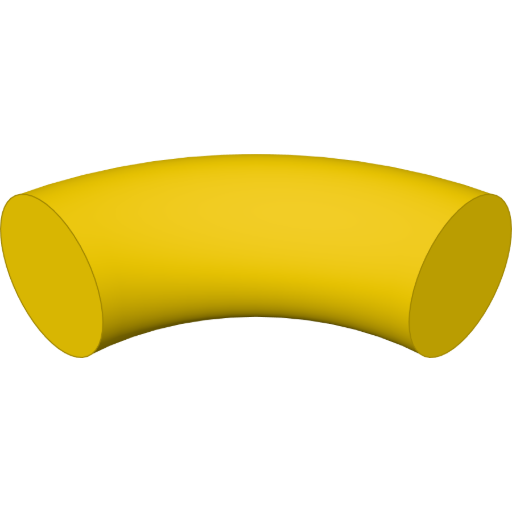

A quarter-turn with capped ends

color gold
circle 12 | revolve 40 angle 90 shrink

open in editor

A path profile's Y grows downwards, so the top of the drawing is the top of the solid.

A profile crossing the axis is clipped to the half it sweeps. For example, circle 20 | revolve makes a sphere of diameter 20.

helix#

Sweep a profile around an axis while rising. A second diameter tapers the sweep from its starting circle to its ending circle.

profile | helix diameter [end-diameter] [pitch distance] [turns count | height distance]
      [start degrees] [about axis] [shrink]

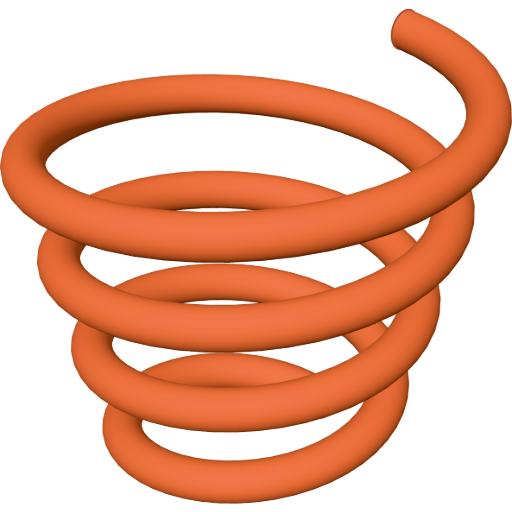

A tapered spring

color coral
circle 4 | helix 24 44 pitch 10 turns 4

open in editor

Height measures the path's rise, so material can extend beyond it by the profile's size. Choose enough pitch to prevent adjacent coils from intersecting.

The slot includes that overshoot: height 60 with a profile 2 tall is 62 tall, and so is a compound around the rod and its thread. To end a thread flush with its rod, run it a pitch past both ends and trim it with on a labelled part and &revolve instead of wrapping it in a compound. That hides the helix's capped ends and lets a chamfer taper the ridge out.

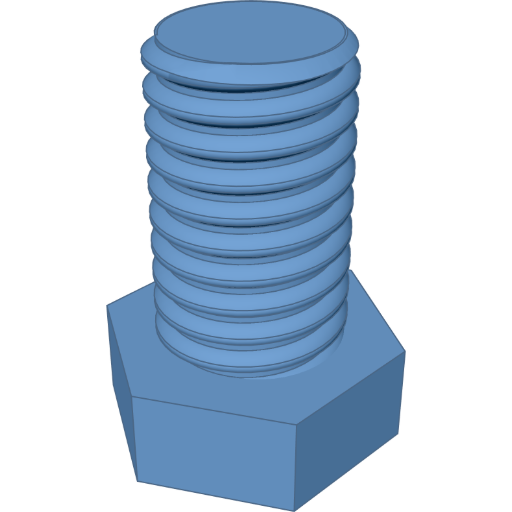

A bolt, its thread trimmed flush and chamfered

head: prism 6 30 10
cylinder 16 30
@center path "M-0.2,-1.2 L0,-1.2 L1.2,-0.3 L1.2,0.3 L0,1.2 L-0.2,1.2 Z"
| helix 16 pitch 3 height 36
on head &path "M0,0 H8 L9.5,1.5 V30 H16 V40 H0 Z" | revolve

open in editor

sweep#

Sweep a profile along the outline of another 2D shape. The trajectory lies in the build plane, where an extruded shape lies.

profile | sweep along trajectory [about axis] [round]

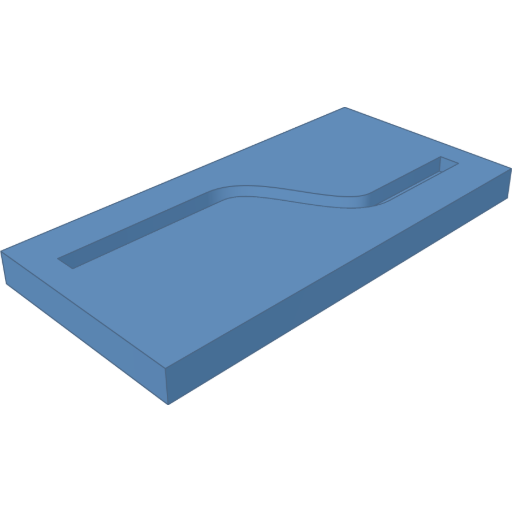

A channel cut along a route on a plate

block 80 40 6
on #top -rect 4 3 | sweep along path "M0,0 H30 C40,0 40,20 50,20 H70"

open in editor

The profile's origin rides the route, and the plane never turns, so the profile never twists. rect 2 10 | sweep along path P is path P | extrude 10 wall 2, and circle 20 | sweep along circle 40 is torus 60 20.

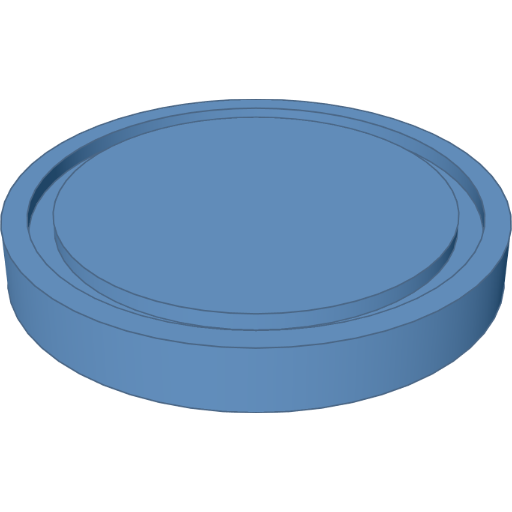

A groove set in from the rim, following a face

cylinder 60 8
on #top -path "M-6,0 H-3 V2 H-6 Z" | sweep along #top

open in editor

A face follows its real outline. On a closed outline the profile's X points outward, so a profile drawn left of its origin lies inside the rim.

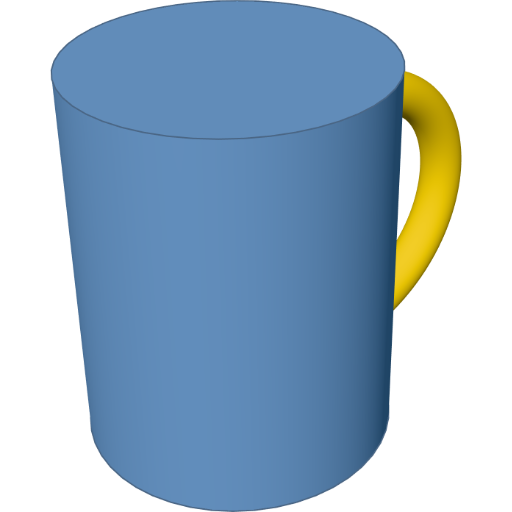

A handle stood upright with about y

cylinder 40 50
@right -2 color gold circle 6 | sweep along path "M0,0 C0,-30 36,-30 36,0" about y

open in editor

about turns the plane as it turns a revolve's axis: the trajectory's X lies on the axis after the named one in the x → y → z cycle, and its Y on the one after that. Corners are mitred like a wall's, and cut off square when sharper; round rounds their outside. A profile wider than the inside of a bend has room for is refused, naming the bend. A single outline that crosses itself is swept as drawn.

varying profiles#

A profile drawn anew at every point of its sweep: a shape macro called with every argument but its last, which the sweep gives as it goes, from 0 at its start to 1 at its end. Written in place, % and one parameter stand for the macro.

shape-macro [argument …] | sweep | % $parameter profile | sweep

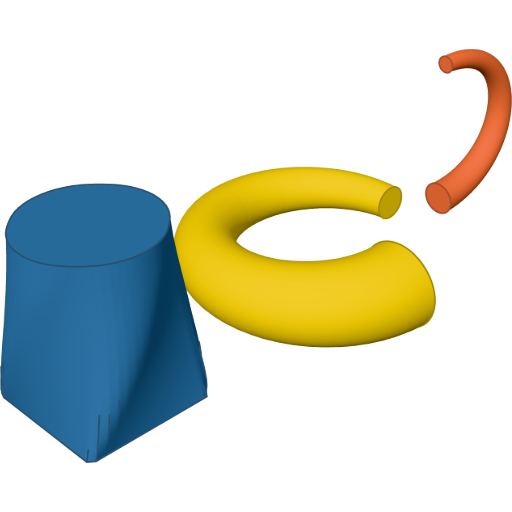

A softening square, a horn, and a thinning handle

def %handle $t circle (8 - 4 * $t)
!@right 10
color steelblue % $t rect 30 30 | round (1 + 13 * $t) | rotate (45 * $t) | extrude 40
color gold % $t circle (8 + 12 * $t) | revolve 50 angle 270
color coral %handle | sweep along path "M0,0 C0,-30 36,-30 36,0" about y

open in editor

A varying profile is drawn wherever it changes most: eight times, and again between two wherever the shape strays from the straight way between them. Written alone, it is a sketch of its start. curve(20, 44, 16, $t) gives a size that passes through each value on the way.

circle#

A circular profile centered on its own origin.

circle diameter

Examplecircle 20 | extrude 4

rect#

A rectangular profile centered on its own origin.

rect width height

Examplerect 30 20 | extrude 4

ellipse#

An elliptical profile centered on its own origin.

ellipse diameter-x diameter-y

Exampleellipse 30 20 | extrude 4

star#

The outline of a starprism, centered on its own origin with its first spike along +X. Extruded, `star 5 40 20` is `starprism 5 40 20` of that height.

star spikes outer-diameter inner-diameter

Examplestar 4 20 10 | extrude 5

polygon#

A polygon of corners written out in the shape's own coordinates, Y up and not re-centered, or the regular polygon of a prism's base, centered on its own origin. Extruded, `polygon 6 20` is `prism 6 20` of that height.

polygon sides [diameter | edge | across] size
polygon points [x y]…

Examplepolygon points [0 0] [30 0] [20 15] [0 10] | extrude 4

#face#

The outline of a face of a built solid, drawn in the face's own frame. A bare face also builds the solid on that face, covering it exactly, unless an on says otherwise.

#face
label #face

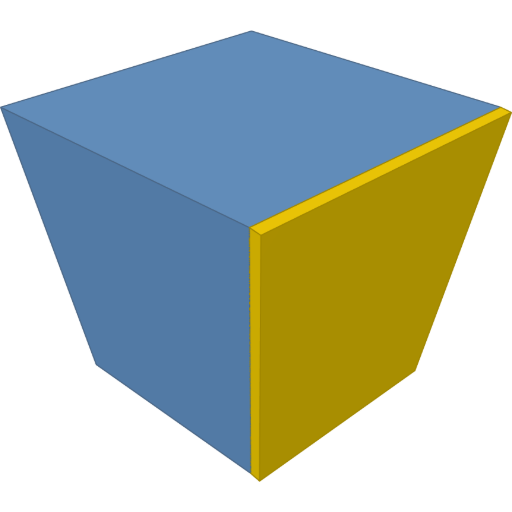

A plate swept from the slanted face it stands on

rect 40 40 | extrude 50 apex [0 0 -130]
on #f2 color gold #f2 | extrude 2

open in editor

A face shape is most useful as the area of a tiling, which fits a pattern to a face without measuring it.

path#

A profile drawn with an SVG path string. SVG's downward Y axis is flipped so the shape stands as drawn.

path "svg-path"
path $variable

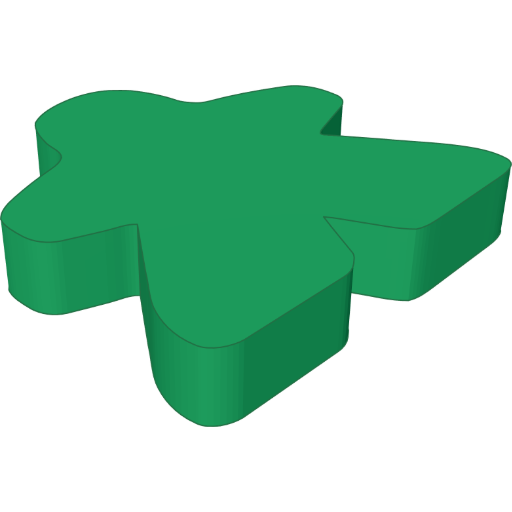

Extrude a custom outline

color mediumseagreen
path "M29.4 1.551C31.446 1.518 33.807 1.959 35.457 3.243 36.234 3.948 37.032 4.689 37.674 5.52 38.925 7.626 39.765 9.96 40.077 12.393 40.173 13.524 40.788 14.37 41.475 15.225 42.099 15.888 43.158 16.119 44.01 16.329 47.217 17.091 50.241 18.27 53.217 19.677 54.423 20.247 55.668 20.7 56.415 21.885 57.684 23.493 57.771 25.653 57.681 27.612 57.576 29.115 56.277 30.177 54.942 30.639 52.665 31.458 50.406 32.319 48.126 33.126 47.559 33.348 46.965 33.552 46.521 33.987 46.407 34.32 46.476 34.608 46.734 34.851 47.664 35.955 48.327 37.239 49.239 38.358 50.082 39.612 51.033 40.785 51.831 42.069 53.685 44.73 55.938 47.475 57.252 50.448 57.981 52.068 58.335 53.775 57.933 55.533 57.753 56.268 57.165 56.832 56.451 57.048 54.627 57.699 52.902 57.606 51.003 57.672 47.301 57.786 43.602 57.879 39.9 58.002 38.499 58.02 36.789 58.134 35.496 57.525 33.867 55.917 33.303 54.042 32.202 52.101 31.494 50.811 30.96 49.419 30.09 48.264 28.833 50.58 27.708 52.962 26.508 55.308 26.145 56.106 25.476 56.415 24.81 56.916 23.967 57.516 22.947 57.816 21.912 57.786 16.821 57.768 11.715 57.798 6.627 57.774 5.037 57.642 2.952 56.694 2.664 54.93 2.124 52.386 2.838 49.77 3.99 47.493 5.094 45.507 6.579 43.872 7.809 42.006 9.747 39.384 11.643 36.753 13.605 34.146 12.669 33.102 11.253 33.075 9.996 32.595 8.4 32.007 6.795 31.422 5.211 30.798 3.642 30.138 2.826 28.662 2.679 27.015 2.571 25.422 2.454 23.526 3.123 22.041 4.11 20.592 5.529 19.773 7.107 19.104 9.561 18.06 12.06 17.169 14.628 16.449 15.75 16.158 16.764 15.717 17.601 14.895 18.714 13.476 18.327 11.937 18.702 10.287 19.266 8.121 19.911 6.021 21.384 4.284 23.676 2.373 26.472 1.686 29.4 1.551Z" | extrude 10

open in editor

Because Y is flipped, a larger Y is lower. For revolve and helix, where Y becomes height, draw the profile top first, as it looks on screen.

The points of an SVG <polygon> paste between M and Z, since the pairs after a move are lines: path "M20,0 40,20 30,20 30,40 10,40 10,20 0,20 Z".

Filled extrusion closes every subpath. extrude … wall preserves open subpaths as open walls. A path literal takes no escapes.

text#

A line of text in the current font and font-size. Give it depth with a sweep operation.

text "string"
text $variable

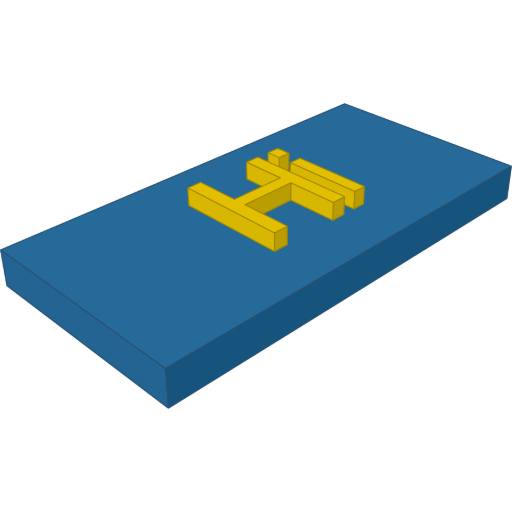

Raised lettering on a base

color steelblue block 48 24 4
on #top color gold
font-size 12 text "Hi" | extrude 2

open in editor

font-size#

Set the height of a capital letter in a text profile, independently of the extrusion height.

[!]font-size size
[!]font-size unset

font-size 12 text "Hello" | extrude 2

font#

Set the font of a text profile: a Google Fonts family name, the https URL of a font file, or a font file path for the command-line tool.

[!]font "family" [weight]
[!]font unset

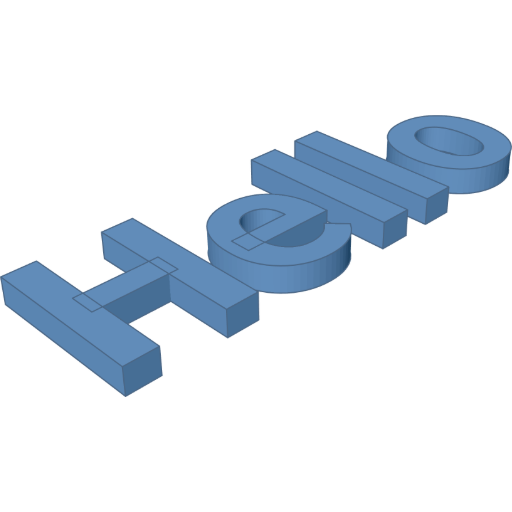

Bold lettering in a Google font

font "Roboto" 700
font-size 12 text "Hello" | extrude 2

open in editor

font-size stays the height of a capital letter in every font. The built-in font covers Latin-1 and Greek. A character the font has no glyph for, built-in or not, is left out, with a warning.

A font file, by URL or on disk, is TTF, OTF, WOFF, or WOFF2, up to 10 MB; a TTC collection gives its first font. The format is read from the content, so a URL needs no extension. A path ends in .ttf, .otf, .woff, .woff2, or .ttc, and only the command-line tool reads it.

offset#

Grow the outline of a profile by a signed distance, or shrink it by a negative one. Corners stay sharp, as a wall's do.

| offset distance [round]

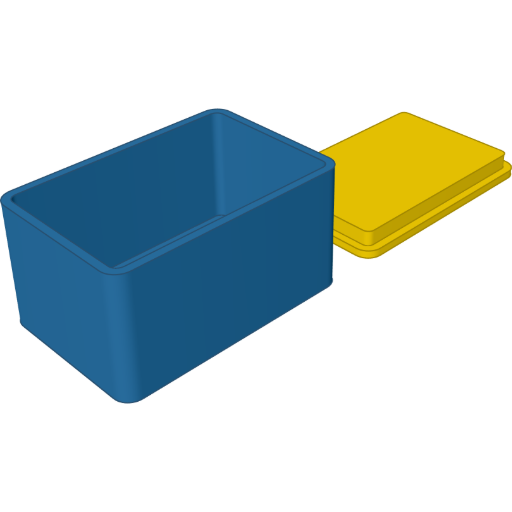

A lid whose lip fits the box with 0.2 to spare

def %outline rect 60 40 | round 4
color steelblue {
  %outline | extrude 2
  %outline | extrude 28 wall 2 inside
}
@right 10 color gold {
  %outline | extrude 2
  %outline | offset -2.2 | extrude 4
}

open in editor

2D modifiers come right after the shape and before its sweep, in one pipeline with the solid's own modifiers: rect 40 30 | offset 2 | extrude 10 | fillet 1. A modifier treats the innermost shape before it, so after a tiling it treats the area; put the tiling in braces to treat its cells. The shape stays in the frame it is drawn in.

round#

Round every corner of a profile, those pointing out and those turning in alike.

| round radius

Examplepolygon points [0 0] [40 0] [40 10] [10 10] [10 40] [0 40] | round 3 | extrude 4

fill#

Fill the holes of a profile, keeping its outlines. A face of a hollowed solid fills into a lid.

| fill

Examplebox: block 40 30 20 | shell 2 on box #top box #top | fill | extrude 2

{ group }#

One profile made of several: each shape placed against the one before it, centered unless x, y or an anchor says otherwise, and joined, cut, kept or cancelled by its sign.

{ shape … } [| modifier …]

The same alignment and offset principles used for 3D solids apply to x and y in a group, including named points, percentages, and reference:shape pairs.

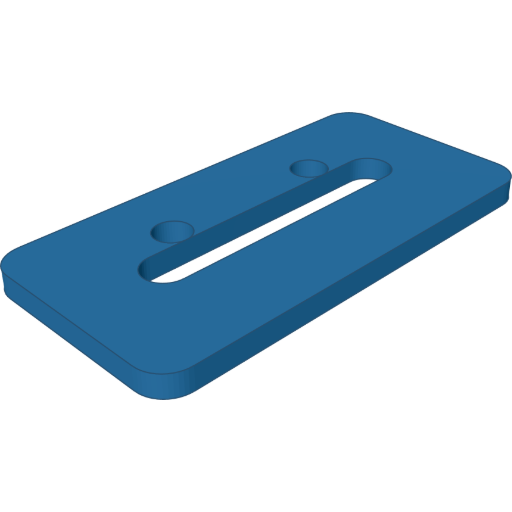

A plate with a slot and a pair of holes

color steelblue
{
  rect 60 30 | round 4
  -rect 40 6 | round 3
  [ x left 6 y front 6 -circle 5  x right -6 y front 6 -circle 5 ]
} | extrude 3

open in editor

The counterpart of a compound. The group claims the box of every shape in it that adds, slot ones included and cut ones not, and takes 2D modifiers as a whole, so braces around a tiling let a modifier treat its cells. Braces holding only shape macro calls are a group too.

− / & / ^#

Change how a shape in a group combines with the shapes before it, as the signs do for solids. Without a sign, the shape is added.

{ … -shape }
{ … &shape }
{ … ^shape }

Example{ rect 40 20 @right -rect 10 10 } | extrude 2

The counterpart of the signs on solids. A signed shape cannot be the first in its group. On the axis an anchor names it reaches back into the shape before it, so the example notches the right edge, and it leaves its box as the reference for the next shape.

rotate#

Turn a shape in a group, or a profile before its sweep, about its own origin.

| rotate degrees

Example{ rect 40 10 rect 40 10 | rotate 90 } | extrude 2

A shape in a group or a profile before its sweep takes it, as a step of the whole shape after that shape's own 2D modifiers. After the sweep the word belongs to the solid's rotate.

scale#

Resize a shape in a group, or a profile before its sweep, about its own origin, uniformly or per axis.

| scale factor
| scale x-factor y-factor

Example{ circle 10 | scale 2 1 } | extrude 2

A shape in a group or a profile before its sweep takes it, as a step of the whole shape after that shape's own 2D modifiers. After the sweep the word belongs to the solid's scale.

flip#

Mirror a shape in a group, or a profile before its sweep, across its own origin.

| flip axis

Example{ star 5 20 10 @right star 5 20 10 | flip x } | extrude 2

A shape in a group or a profile before its sweep takes it, as a step of the whole shape after that shape's own 2D modifiers. After the sweep the word belongs to the solid's flip.

honeycomb#

Hexagonal cells in columns, each column half a cell off the next, laid over the area of a shape and cut back to it, leaving a rim along its outline. Subtract it to perforate a plate.

honeycomb diameter strut [angle degrees] [rim width] in area

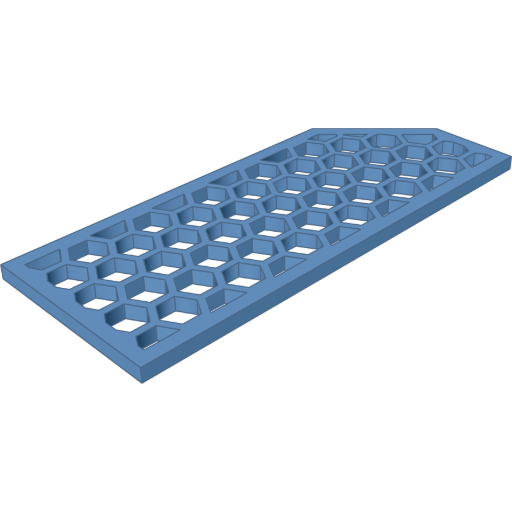

A drawn outline perforated with its own honeycomb

set $outline "M0,0 H80 L100,20 V40 H0 Z"
path $outline | extrude 3
-honeycomb 8 1.5 rim 3 in path $outline | extrude 3

open in editor

The tiling and the plate share one outline, so the rim follows it all the way round. angle turns the cells inside the area, which stays where it is.

squares#

Square cells in a plain grid, laid over the area of a shape and cut back to it, leaving a rim along its outline. Subtract it to perforate a plate.

squares diameter strut [angle degrees] [rim width] in area

Examplerect 70 50 | extrude 3 -squares 8 1.5 rim 5 in rect 70 50 | extrude 3

triangles#

Triangular cells in rows, pointing back and front in turn, laid over the area of a shape and cut back to it, leaving a rim along its outline. Subtract it to perforate a plate.

triangles diameter strut [angle degrees] [rim width] in area

Examplerect 70 50 | extrude 3 -triangles 8 1.5 rim 5 in rect 70 50 | extrude 3

stripes#

Parallel stripes running left to right, laid over the area of a shape and cut back to it, leaving a rim along its outline. Subtract it to cut slots into a plate.

stripes width strut [angle degrees] [rim width] in area

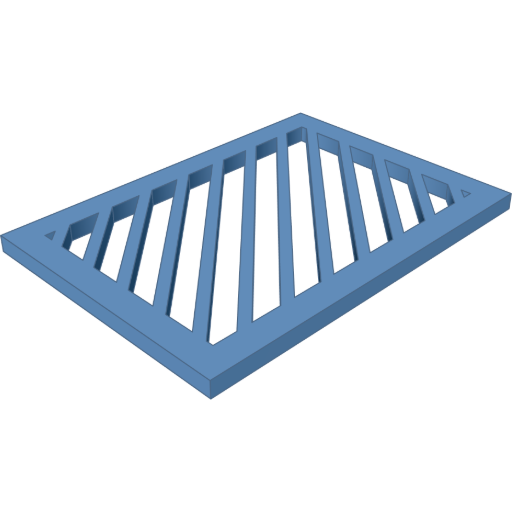

A plate cut with diagonal stripes

rect 70 50 | extrude 3 -stripes 4 2 angle 45 rim 5 in rect 70 50 | extrude 3

open in editor

The stripes are turned inside the area, which stays where it is, and the rim stops every one of them 5 short of the outline.

voronoi#

Cells nearest each of a set of sites, laid over the area of a shape and cut back to it, leaving a rim along its outline. Subtract it to perforate a plate.

voronoi strut [cells count] [seed seed] [points [x y]…] [relax passes] [rim width] in area

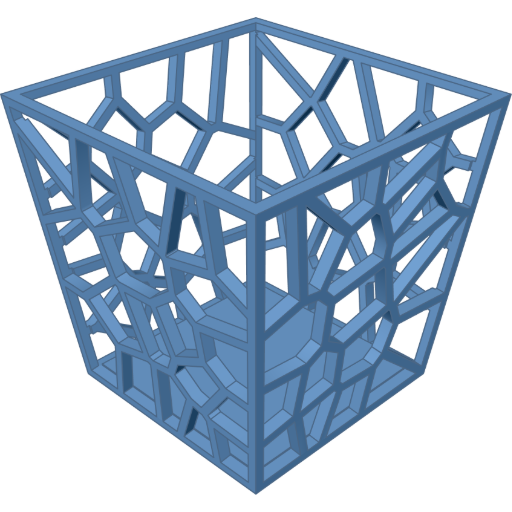

A vase with a voronoi pattern on every side

rect 40 40 | extrude 50 apex [0 0 -170] | shell 2 [
  on #f2 -voronoi 1.5 cells 20 seed 1 in #f2 | extrude 2
  on #f3 -voronoi 1.5 cells 20 seed 2 in #f3 | extrude 2
  on #f4 -voronoi 1.5 cells 20 seed 3 in #f4 | extrude 2
  on #f5 -voronoi 1.5 cells 20 seed 4 in #f5 | extrude 2
]

open in editor

Each side is its own area, so the pattern follows the trapezoid of the face and the rim keeps the corners standing. The label brings every cut back to the vase.

rotate#

Turn a solid around one axis in its own frame. Chain rotations to specify their order.

| rotate angle about axis-or-face

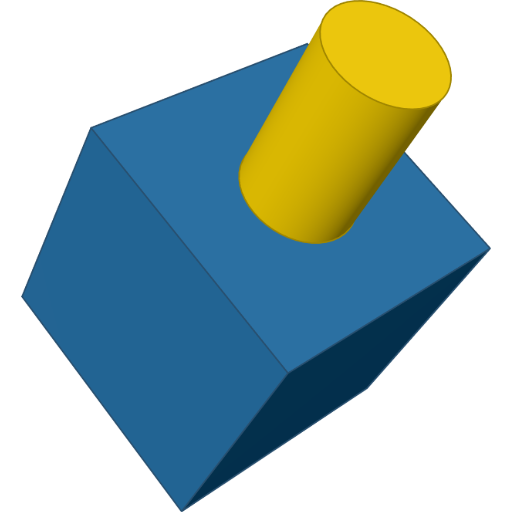

A face follows its solid through a turn

color steelblue cube 24 | rotate 30 about x
on #top color gold cylinder 10 16

open in editor

Placement uses the transformed bounds. A named face follows the original solid; #bounds.top instead selects the top of the current bounding box.

For a shape inside a 2D group, see 2D rotate.

scale#

Resize uniformly or along all three axes independently. Useful for compounds, macros, and swept solids.

| scale factor
| scale x-factor y-factor z-factor

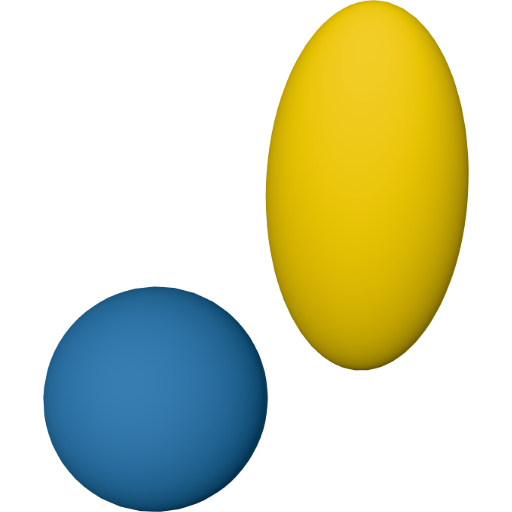

Stretch a sphere along one axis

color steelblue sphere 20
@right 8 color gold sphere 20 | scale 1 1 2

open in editor

Scaling after a fillet scales its radius too. Scaling before the fillet leaves the subsequently specified radius unchanged.

For a shape inside a 2D group, see 2D scale.

flip#

Reflect across the plane normal to an axis, without changing size.

| flip axis

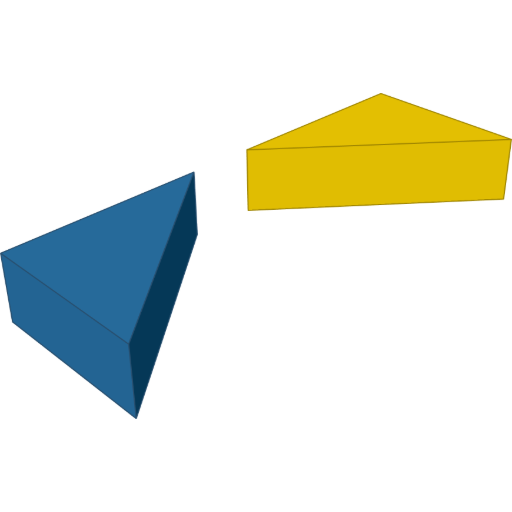

Mirror a custom profile

color steelblue path "M0,0 H24 L0,20 Z" | extrude 8
@right 8 color gold
path "M0,0 H24 L0,20 Z" | extrude 8 | flip x

open in editor

For a shape inside a 2D group, see 2D flip.

shell#

Hollow a finished solid inward, keeping its bottom and opening the flat face that points up where the shell stands in the pipeline, the faces named, or none.

| shell thickness [open face | open [face …] | closed]

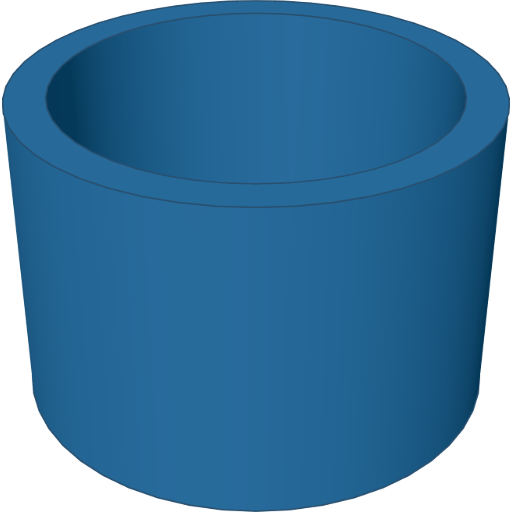

A vessel with a bottom and a rim

color steelblue
cylinder 36 24 | shell 3

open in editor

The opening is the solid's flat top face; every other face moves inward and keeps its shape, so sloped walls and narrow necks stay. A solid without a flat top, such as a sphere, needs a cut first. Shell also accepts fused compounds.

open names the faces to leave open instead, one or a list such as open [#top #front], named as on names them where the shell stands, so a slope such as a pyramid's #f1 can open too. closed opens none, leaving a sealed hollow to subtract from or build into later. An opening other than the top may need the slow general computation.

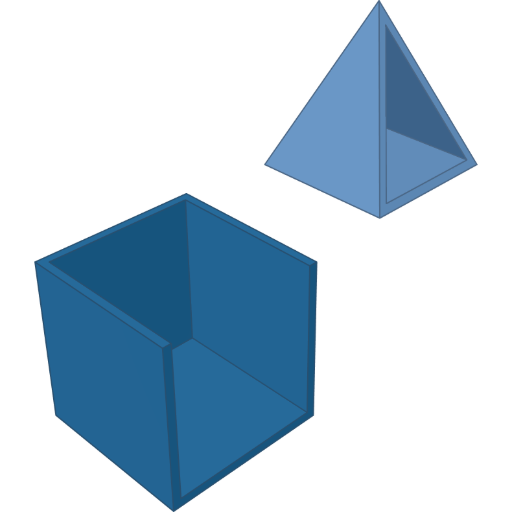

Open through two faces, and through a slope

color steelblue
cube 40 | shell 2 open [#top #front]
x 60 pyramid 4 50 40 | shell 2 open #f1

open in editor

cut#

Keep only the portion between two levels on the solid's local Z axis. The result gets a new base at Z = 0 and new face names.

| cut lower upper

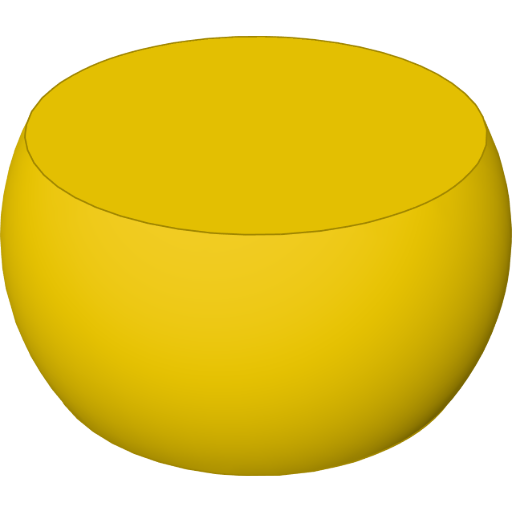

Keep the middle of a sphere

color gold
sphere 36 | cut 25% 75%

open in editor

Percentages measure the solid as the preceding pipeline step left it. Levels outside the solid do not remove additional material.

chamfer#

Bevel selected logical edges of any solid with sharp edges, measured along both faces whatever angle they meet at.

| chamfer distance [distance] [at edge-selector]

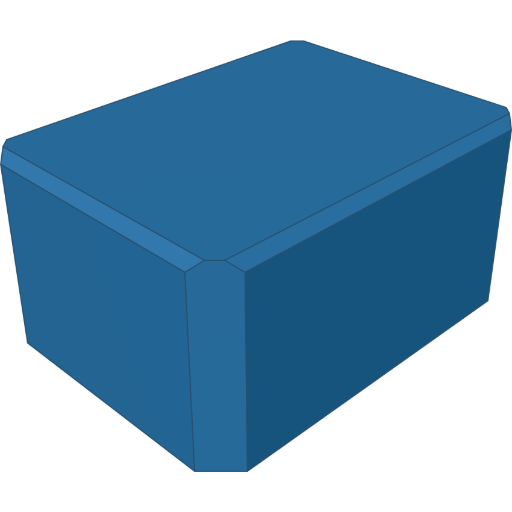

Bevel upright edges, then the top

color steelblue
block 40 30 20
| chamfer 3 at parallel z
| chamfer 1 at #top

open in editor

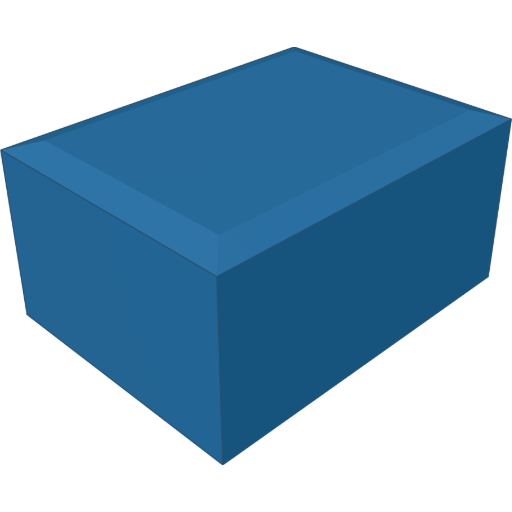

Cut 3 across the top and 1 down the sides

color steelblue
block 40 30 20
| chamfer 3 1 at #top

open in editor

Edges whose faces meet at any angle are supported. Selectors read the geometry left by the previous step; a selector matching no edges is a warning, and the modifier is left out.

fillet#

Round edges with a surface tangent to their neighboring faces. Uses the same geometry, selectors, and size limits as chamfer.

| fillet radius [at edge-selector]

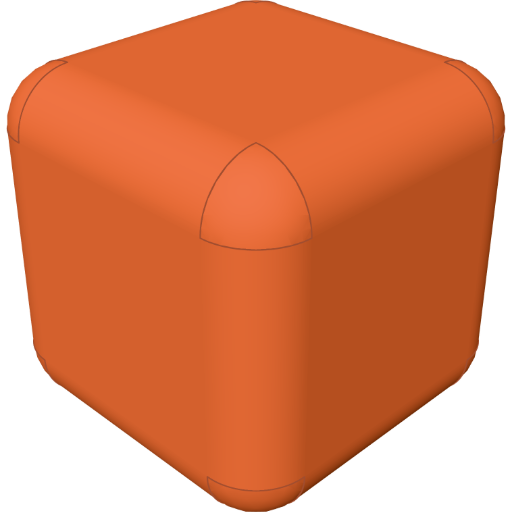

Round every edge and corner

color coral
cube 30 | fillet 5

open in editor

Concave edges gain material; convex edges lose it. Chamfers and fillets can be combined in one pipeline. Apply edge operations before oblique rotations.

Edge selectors#

A predicate that selects whole logical edges for chamfer and fillet, rather than the triangle edges used to draw a surface. Any tests combine with any others.

parallel axis
#face
nearest x y z
axis comparison value
selector or selector
selector and selector
not selector
tangent selector
(selector)

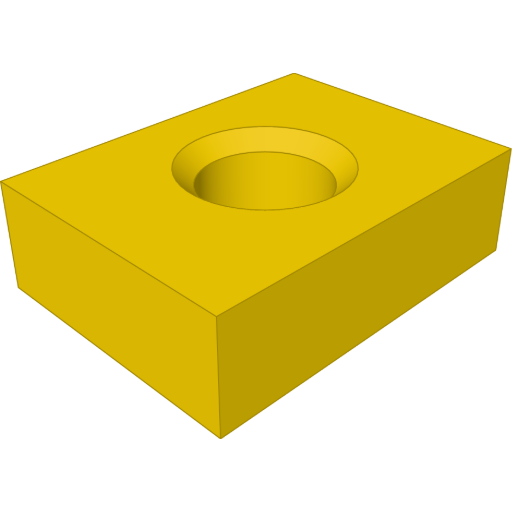

Select the rim inside a bore

color gold {
  block 40 30 12
  -cylinder 14 12
} | chamfer 2 at nearest 0 0 12

open in editor

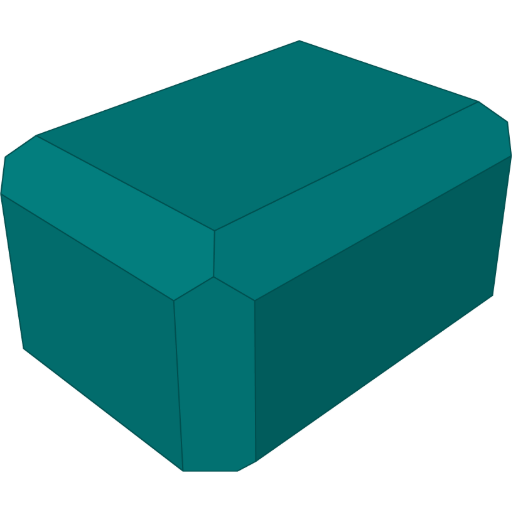

Combine a face with a direction

color teal
block 40 30 20
| chamfer 4 at #top or parallel z
| chamfer 1 at #bottom and not parallel y

open in editor

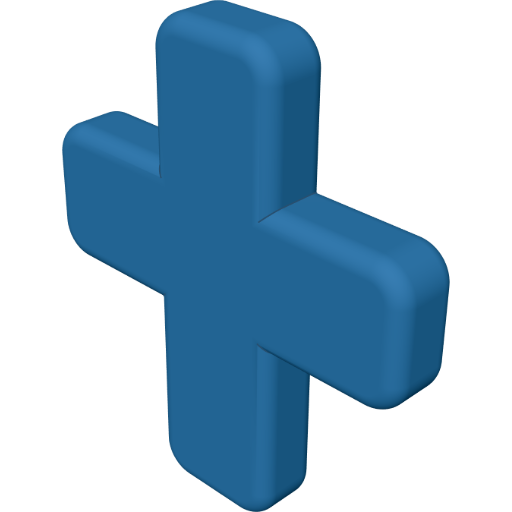

Follow the uprights round earlier fillets

color steelblue {
  block 4 8 27 | fillet 2 at parallel x
  z top:top -8 block 4 24 8 | fillet 2 at parallel x
} | fillet 1 at tangent parallel z

open in editor

Coordinates are evaluated before placement. On block 40 30 20, X spans −20 to 20, Y spans −15 to 15, and Z spans 0 to 20. z > 10 selects top edges; vertical edges do not satisfy it over their whole length.

Each operand is evaluated over every edge before and, or and not combine the results, so nearest ranks all edges, not only those its neighbours leave. A cylinder's logical edges are its two complete rims, so conditions on Z can select them, while x > 0 cannot select half a rim.

@anchors#

Choose the direction from the placement reference and optionally leave a gap. Anchors seed one axis's alignment and offset.

[!]@direction [gap | unset]

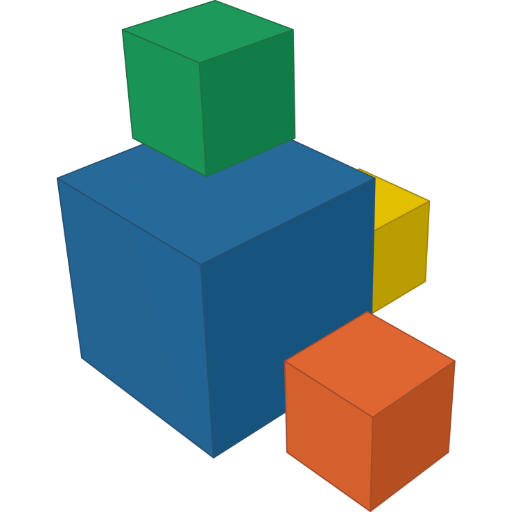

Branch along the local axes

color steelblue cube 20 [
  @right 4 color gold cube 10
  @front 4 color coral cube 10
  @top 4 color mediumseagreen cube 10
]

open in editor

Ordinary solids default to local @top. After a negative volume, ordinary solids default to @bottom; intersection and symmetric difference also default to @bottom. A persistent anchor overrides these defaults.

Anchors keep the current orientation. @bottom cone 12 8 places an upright cone below an unrotated block, with its tip against the block. on #bottom cone 12 8 turns the cone outward, with its base against the block and its tip pointing down.

x / y / z#

Set an axis's alignment, offset, or both. The same forms apply to y and z. Each axis has two independent settings.

[!]x alignment [offset]
[!]x offset
[!]x unset

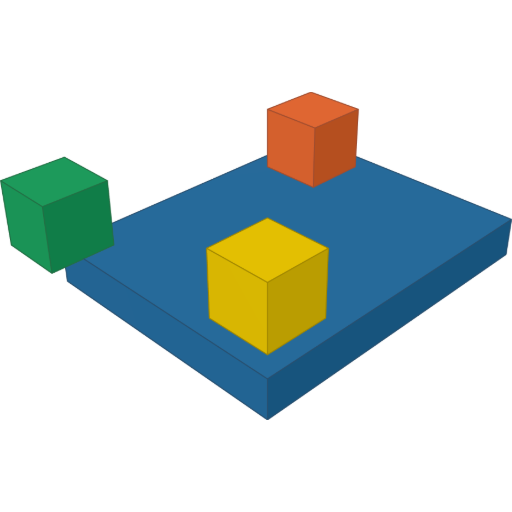

Place against opposite corners

color steelblue block 50 40 6
on #top [
  x left 3 y front 3 color gold cube 10
  x right -3 y back -3 color coral cube 10
  x left:center y back:center color mediumseagreen cube 10
]

open in editor

Axis commands override whichever settings they name, including settings supplied by an anchor.

on#

Select the reference for the next solid. A face also supplies a local frame whose Z axis points outward.

on #face
on label [#face]
on root
on [label] [#face …] statement

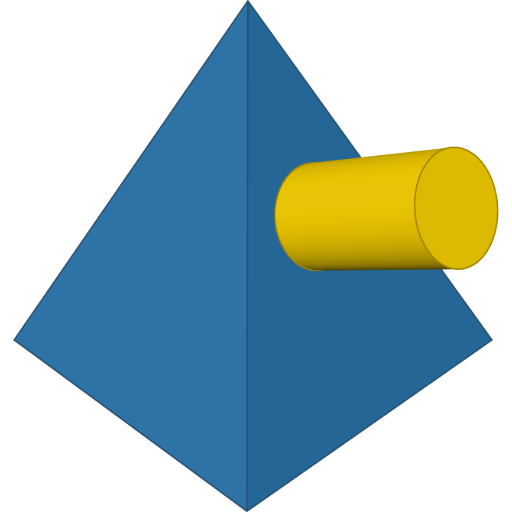

Build on a slanted, numbered face

body: color steelblue pyramid 4 40 30
on body #f1 color gold cylinder 8 14

open in editor

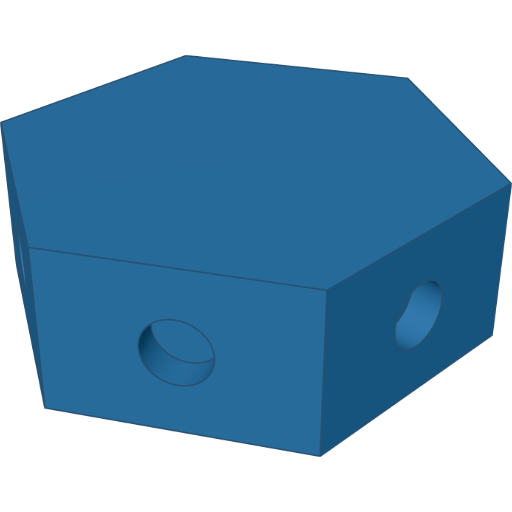

Drill every side of a hexagon

body: color steelblue prism 6 edge 30 20
on body [#f2 #f3 #f4 #f5 #f6 #f7] -cylinder 8 4

open in editor

A label and one-shot setters may stand before the on of their solid: plate: color red on #front cube 10. A label cannot stand before a face list. Before any volume exists, a face selects the build plane; inside a compound or macro body write it as on root #front. on creates no scope. On a selected face, use x and y for sideways placement; a sideways anchor on the first solid is rejected. A persistent anchor is ignored for that first solid, then resumes.

Face names are local to the solid. After an initial on #front, a new block's #front faces world-down, #back world-up, and #top world-front. The local frame lets the same macro grow outward from any face without rewriting its coordinates. See faces and coordinate frames.

slot#

The room a solid takes, without its material. Use its faces, anchors, and labels just as you would the solid's.

slot solid

Slots contribute to compound bounds. They cannot be boolean operands. A modifier shapes the room the way it would shape the solid.

A solid with a size of zero is a zero-sized volume: it keeps its room like a slot and builds no material. As a boolean operand it is the empty volume, so cube 5 -cube 0 leaves the cube whole and cube 5 &cube 0 leaves nothing. Transforms turn its room; other modifiers are skipped, and it has no numbered sides. A zero written as a plain number warns; one computed from a variable does not.

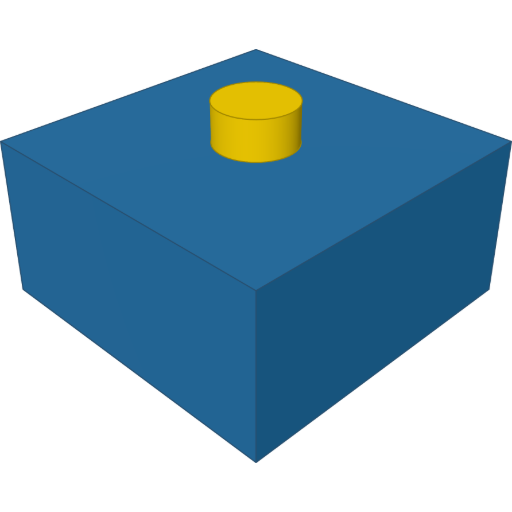

Size a part down to nothing

set $lid 0
color steelblue block 40 40 20
@top block 40 40 $lid
@top color gold cylinder 10 5

open in editor

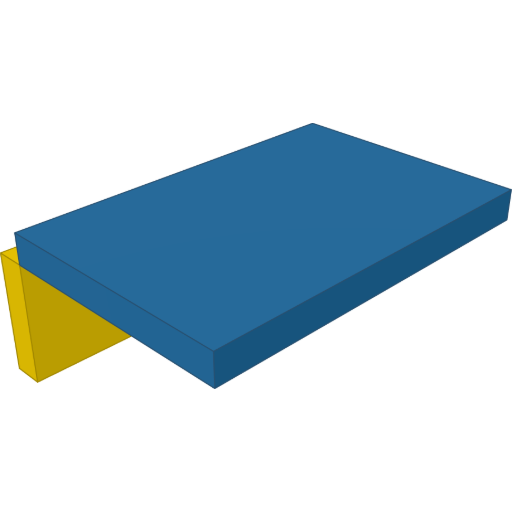

Build around an empty space

gap: slot block 60 40 20
color steelblue block 60 40 5
on gap #back color gold block 60 20 5

open in editor

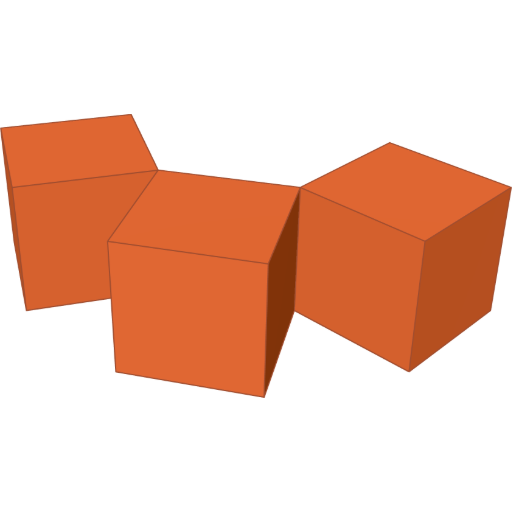

Build on the side of a missing prism

slot prism 6 20 20 [
  on #f2 color coral cube 10
  on #f3 color coral cube 10
  on #f4 color coral cube 10
]

open in editor

color#

Set a solid's color. A plain setter applies once; ! makes it persistent in the current scope. 3MF and STEP export include colors only when the model sets one.

[!]color name-or-hex
[!]color unset

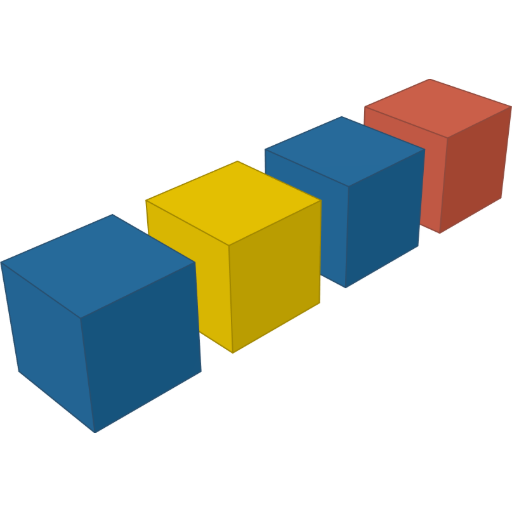

A persistent color with a one-shot override

!@right 4
!color steelblue
cube 12
color gold cube 12
cube 12
color #e87864 cube 12

open in editor

Persistent appearance settings enter lists, compounds, and macro bodies. Changes within a list, compound, or macro stay inside it.

set#

Assign a number or string immediately. Values must exist before use; later reassignment does not change earlier geometry or stored settings.

set $name value

set $size 20
set $label "Hi"
block ($size * 2) $size 4
on #top text $label | extrude 2

A variable is written with its $ wherever a number or a profile string is accepted. Lists share variables; compound assignments stay local. Macro bodies see only parameters and local assignments. A pattern index is local to its pattern.

( expression )#

Combine numbers and numeric variables. Operators of a higher row bind tighter; within a row they apply from left to right, except ** which applies from right to left.

( operand operator operand … )
( test ? value : otherwise )

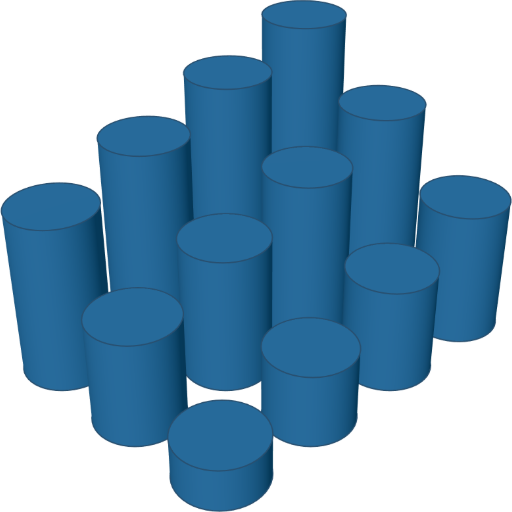

Column and row read from one grid index

!color steelblue
grid 4 3 2 with index $i
  cylinder 8 (4 + $i % 4 * 3 + floor($i / 4) * 6)

open in editor

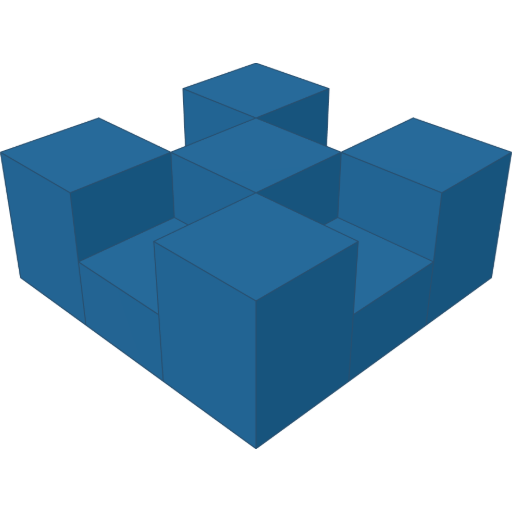

A checkerboard chosen by the index

!color steelblue
grid 3 3 with index $i
  block 8 8 ($i % 2 == 0 ? 10 : 5)

open in editor

Numbers may carry a decimal point, as in 1.5, and never touch a word: 2pi is an error, so write (2 * pi). A division or remainder by zero is an error, and so is a power with no real value, such as (-8) ** 0.5. Percentages such as 25% are literal points on a box, not expressions; inside parentheses % is always the remainder.

functions#

Work out a number from others. A call stands wherever a number does, inside an expression or bare as an argument, and calls nest. The name touches its opening parenthesis; commas part the arguments.

sin(degrees)  cos(degrees)  tan(degrees)
asin(value)  acos(value)  atan(value)  atan2(y, x)
sqrt(value)  exp(value)  log(value)  abs(value)
round(value)  floor(value)  ceil(value)
min(value, …)  max(value, …)  lerp(from, to, t)  curve(value, value, …, t)
pi

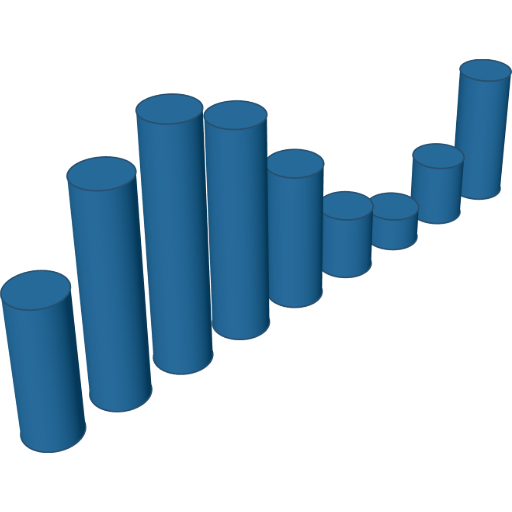

Heights along a sine wave

!color steelblue
linear 8 9 with index $i
  cylinder 6 (16 + 12 * sin($i * 45))

open in editor

An unknown name, a call with the wrong number of arguments, and a call with no value - the square root of a negative number - are errors.

measures#

Read a size back from a labelled volume: the side of its slot along X, Y or Z, measured in the frame the volume was placed in. A measure stands wherever a number does.

label.width  label.depth  label.height

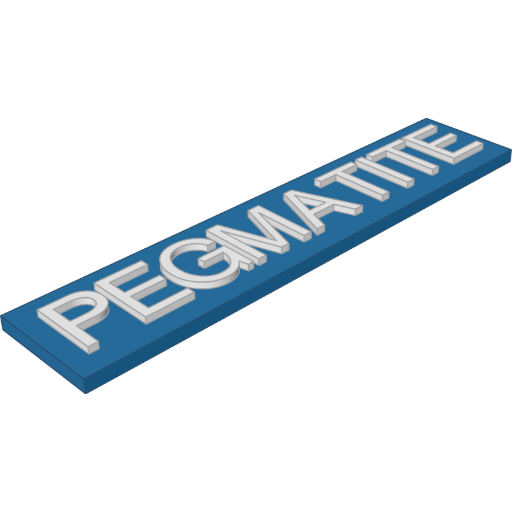

A plate sized to its text

title: slot text "PEGMATITE" | extrude 1
@bottom color steelblue block (title.width + 6) (title.depth + 6) 2
on #top color white text "PEGMATITE" | extrude 1

open in editor

It is the slot that is measured, not the material, since the slot is what every other volume is placed from. The two are the same box for most volumes; a partial revolve, circular pattern or helix measures the whole circle it turns about, and with shrink the arc its material covers. A slot measures a solid without building it, and a labelled macro call measures the part its body built. A solid cannot measure itself.

width( ) height( )#

Measure a 2D shape in its own frame: how far it reaches along x or y, or only at a given y or x. A shape measure stands wherever a number does.

width(2d-shape [, y])  height(2d-shape [, x])

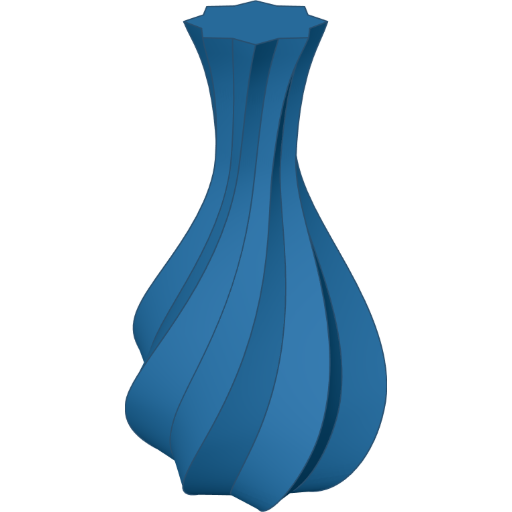

A star vase sized by a revolve silhouette

set $vase "M0 0H16C29.087.1 46.44-13.48 46.51-39.95S13.71-97.47 13.16-123.74 18.98-157.96 20.77-163.99H0"
!color steelblue
% $t star 8 2 1.6 | scale width(path $vase, $t * height(path $vase)) | rotate (90 * $t) | extrude height(path $vase)

open in editor

A circle is centred, so width(circle 20, 0) is 20 and width(circle 20, 10) is 0. A silhouette drawn for a revolve is half of the solid, so its width is the radius.

[ list ]#

Branch every item from the reference saved at the opening bracket. Closing the list restores that reference.

[ statements ]

cube 20 [
  @left color gold cube 8
  @right color coral cube 8
]
@top sphere 10

Settings and labels are local to the list. Variables and boolean operations remain in the surrounding context. A nested list immediately after an item branches from that item's volume. A build plane selected inside the list reaches only the item it leads into.

{ compound }#

Fuse a body into one placeable solid, with its own origin, labels, and boolean operations.

[properties] { statements } [| modifier …]

Touching and overlapping children are joined; disconnected children remain parts of the same solid. The placement box encloses the slots of the children that add material, including empty ones; a - or & child leads the next one but claims no room. Appearance enters the body; placement applies to the finished compound.

color steelblue {
  block 30 30 6
  cylinder 16 20
}

− / & / ^#

Change how a solid combines with existing material in the same construction context. Without a sign, geometry is added.

[properties] -solid
[properties] &solid
[properties] ^solid

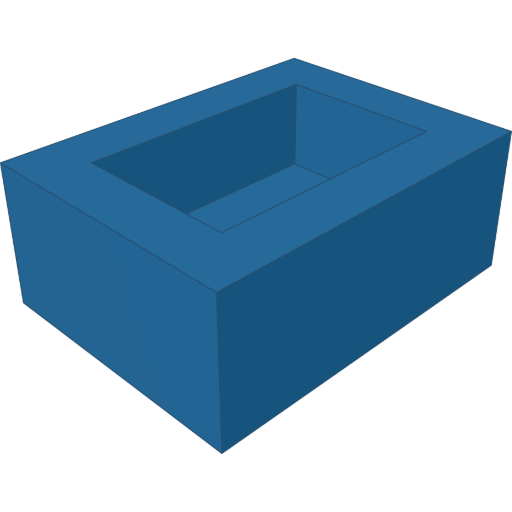

A pocket cut into a compound

color steelblue {
  block 40 30 16
  on #top -block 28 18 10
}

open in editor

A signed volume cannot be the first volume in its construction context. It reaches inward along its anchor axis. Difference defaults to drilling from the top; intersection and symmetric difference default to base alignment. The operand leaves a placement reference even when its material is removed. A difference that removes no material is a warning.

def#

Define a reusable compound or 2D shape with numeric parameters, then call it like a solid, or where a shape is expected. A definition stands among the statements of the script, never inside braces, a list or a branch; a statement calls the macros defined above it, and a body any macro defined by the time it runs.

def %name $parameter … { statements }
def %name $parameter … statement
def %name $parameter … 2d-shape
%name argument …

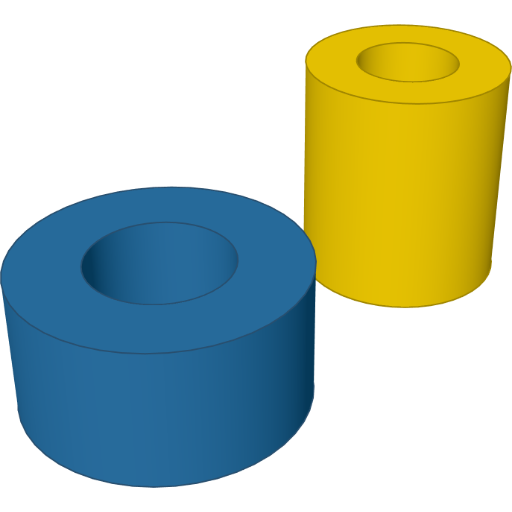

One part, two sizes

def %spacer $diameter $height {
  cylinder $diameter $height
  -cylinder ($diameter / 2) $height
}
color steelblue %spacer 24 12
@right 8 color gold %spacer 18 20

open in editor

Definitions may call other macros and can be written in any order. A call accepts properties, boolean signs, and modifier pipelines.

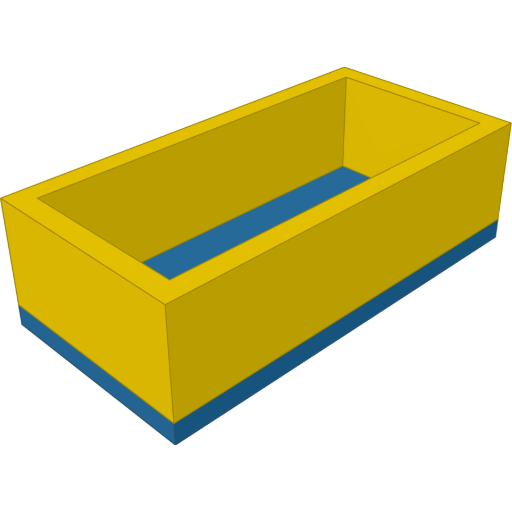

One outline, swept twice

def %base path "M0,0 H40 V20 H0 Z"
color steelblue %base | extrude 2
on #top color gold %base | extrude 10 wall 2 inside

open in editor

A shape macro is a solid nowhere else: calling it as a statement, or a solid macro in place of a shape, is an error.

part#

Begin a part of the model: the material built after it, up to the next part, is exported to 3MF as one named object, to STEP as bodies carrying its name, and shown or hidden as one in the editor. A part stands among the statements of the script, never inside braces, a list, a branch or a macro body.

part name

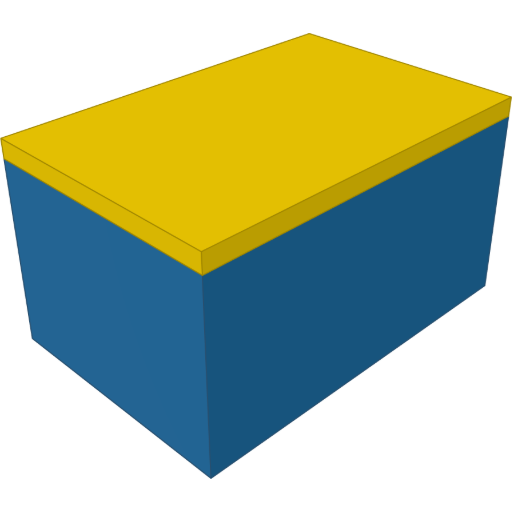

A box and its lid

part "Box"
box: color steelblue block 60 40 30 | shell 2
part "Lid"
on box #top color gold block 60 40 3
on #bottom color gold block 55 35 3

open in editor

Placement, labels, settings and variables carry on across a part, so the lid is built on the box. Booleans do not: a part is a construction context of its own, and a signed volume reaches only its own part. What comes before the first part is a part with no name, exported as Unnamed. A part with no material warns and is left out of the export.

if#

Build the statement after the test when it holds, and the one after else when it does not. An if stands for the branch it picks; with none picked it is as though nothing were written.

if test statement [else statement]

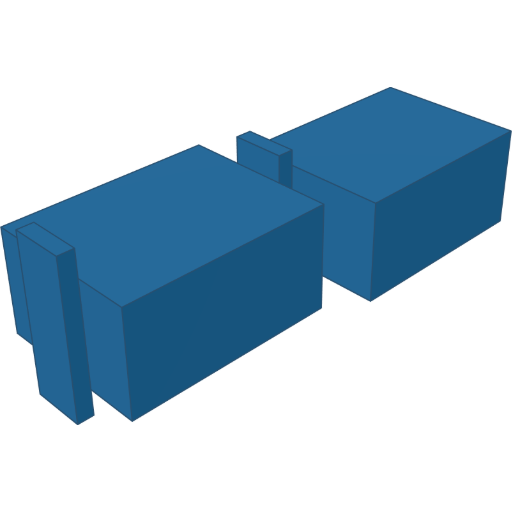

Mounting ears that a parameter switches on

def %case $ears {
  block 40 30 20
  if $ears == 1 [
    on #left block 10 30 3
    on #right block 10 30 3
  ]
}

!color steelblue
!@right 10
%case 1
%case 0

open in editor

An if opens no scope and keeps no slot: what follows is placed against whatever the branch left behind, and with no branch picked against whatever the if itself followed. Setters written before it bind to the branch picked, and to nothing when none is. A macro may call itself behind a test, up to 64 calls deep.

repeat#

Run a body repeatedly as a continuing sequence. The pattern leaves a combined slot around its iterations.

repeat count [with index $name] body

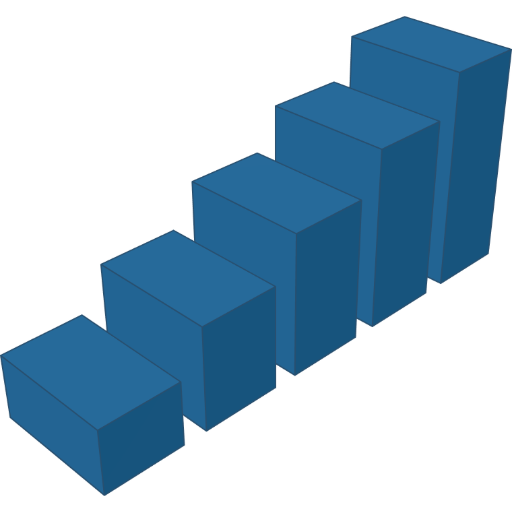

A row driven by its iteration index

!color steelblue
!@right 3
repeat 5 with index $i block 10 16 (8 + $i * 5)

open in editor

One-shot setters before the pattern are consumed by its first solid. A repeat body continues its sequence even when the pattern appears inside a list.

linear#

Space the iterations out along X of the current frame, their centres the distance apart whatever size each iteration is.

linear distance count [with index $name] body
linear inset margin count [with index $name] body

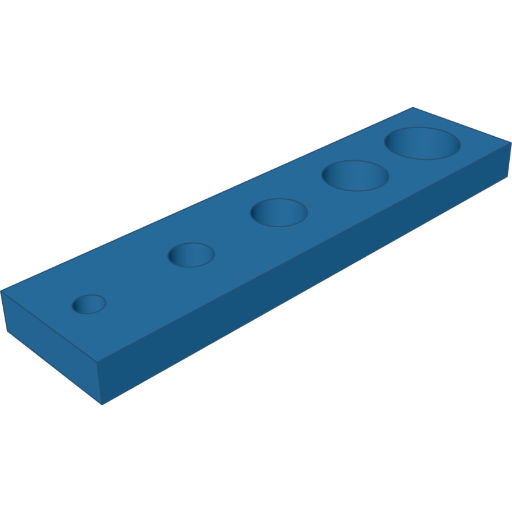

Holes of growing size, evenly spaced

color steelblue block 80 20 6
on #top linear 16 5 with index $i -cylinder (4 + $i * 2) 6

open in editor

Unlike repeat, which puts each iteration against the previous one, a linear pattern spaces the centres, so iterations of different sizes stay on an even pitch. Placement setters before the pattern position the row as a whole, and what follows is placed against the box over what it built.

circular#

Place each iteration at its own point around a circle, beginning at +X and sweeping toward +Y in the current frame.

circular diameter count [angle degrees] [start degrees] [shrink]
           [with index $name] body

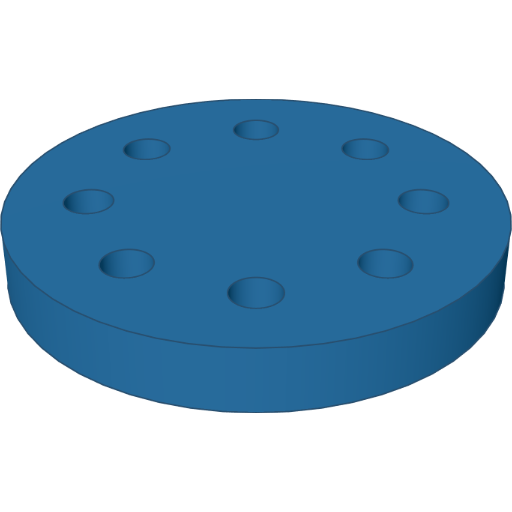

A circular pattern of holes

color steelblue cylinder 60 8
on #top circular 40 8 @top -cylinder 6 8

open in editor

Placement setters before the pattern position the ring as a whole. Appearance setters reach only its first solid unless made persistent. Wrap the pattern in a compound to isolate its booleans.

grid#

Lay the iterations out in cells, columns along X and rows along Y of the current frame. Every cell is the size of the largest iteration.

grid columns rows [gap] [inset margin] [y-margin] [with index $name] body

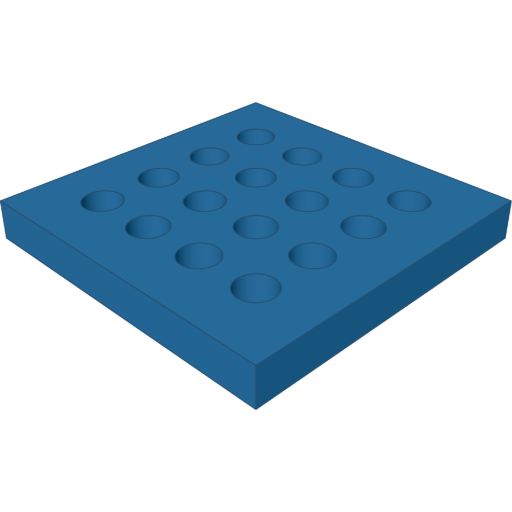

A grid of holes

color steelblue block 50 50 6
on #top grid 4 4 4 -cylinder 6 6

open in editor

Placement setters before the pattern position the grid as a whole, and what follows is placed against the box over all its cells. A grid of negative volumes reaches into what it was placed against, as a single negative volume does.

mirror#

Build the body, then a reflected copy of it beside it, the two standing against a plane between them that faces the axis.

mirror axis [gap] [inset margin] [with index $name] body

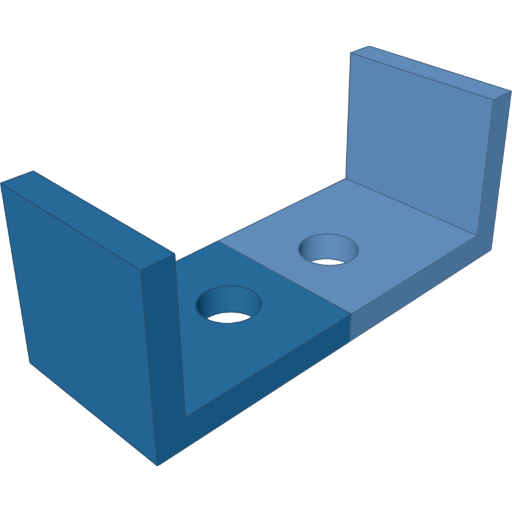

A bracket written as one half

color steelblue
mirror x {
  block 30 24 4
  [ on #top x 6 -cylinder 8 4 ]
  @top x left block 4 24 20
}

open in editor

Each half is placed by its size, as an iteration of a linear pattern is, whatever offset its body is built at. The copy is a true reflection, so text in it reads backwards, and a hole the body drills into an earlier volume is mirrored too. Placement setters before the pattern position the pair as a whole, by the box over both halves; nest one mirror in another for a part symmetric in two directions.
