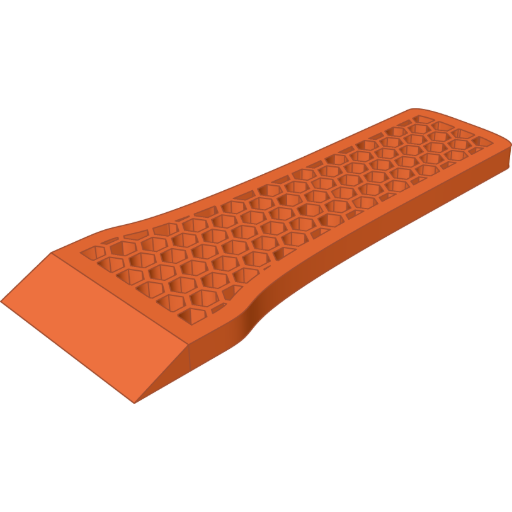

An open handle and a wedge-shaped edge, built from two simple profiles.

def %base path "M 0 26 v -52 H 10 C 26 -26 10 -20 80 -19 H 127
  C 130 -19 132 -15 132 -4 V 4 C 132 16 130 19 127 19 H 80
  C 10 19 26 26 10 26 Z"

set $h 7
!color coral

plate: %base | extrude $h
[ -honeycomb 7 1.5 rim 5 in %base | extrude 7 ]
@left block 15 plate.depth $h | chamfer 15 $h at #top and #left

open in editor

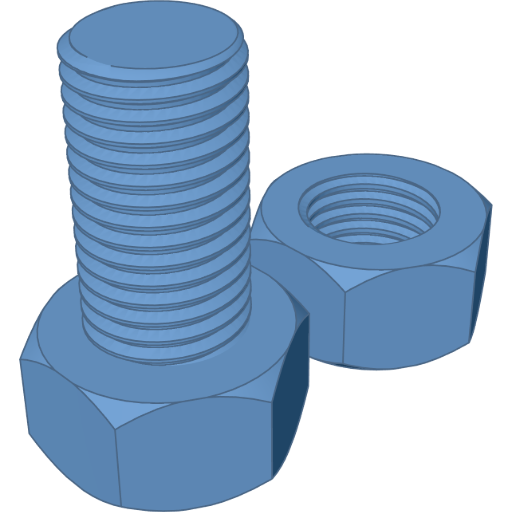

Screw & Nut

Helical threads and chamfered edges bring a pair of mechanical parts together.

/* Screw and nut - trapezoidal right hand thread */
set $pitch 3.81
set $height 24.3  /* head/nut height */

/* hex body, 46.8 across flats and so 54.04 across corners, its corners
   chamfered at 45 degrees from a circle just outside the flats */
def %hex {
  prism 6 across 46.8 $height | rotate 90 about z
  [-path "M23.53,0 H28 V4.47 Z" | revolve]
  @bottom -path "M28,0 V4.47 H23.53 Z" | revolve
}


part "screw"
set $minor 26.57   /* root diameter of the thread */
set $shaft 56.7
{
  head: %hex
  cylinder $minor $shaft

  /* ridge in section: 2.94 wide at the root, 0.65 at the crest, 2.02 tall.
     it runs a pitch past both ends, so its capped ends lie inside the head
     and above the tip, and the chamfer tapers the ridge to nothing */
  @center path "M-0.2,-1.47 L0,-1.47 L2.02,-0.325 L2.02,0.325 L0,1.47 L-0.2,1.47 Z"
  | helix $minor pitch $pitch height ($shaft + (2 * $pitch))

  /* trim the run-out and chamfer the tip - drawn top down, as SVG y grows down */
  on head &path "M0,0 H13.73 L15.5,1.6 V56.7 H28 V81 H0 Z" | revolve
}

part "nut"
set $bore 27.84    /* crest diameter of the internal thread */

@right 10 %hex
/* groove in section: 2.65 wide at the bore, 0.59 at the bottom, 1.8 deep */
@center -{
  cylinder $bore ($height + 2)
  @center path "M-0.2,-1.325 L0,-1.325 L1.8,-0.295 L1.8,0.295 L0,1.325 L-0.2,1.325 Z"
  | helix $bore pitch $pitch height ($height + (2 * $pitch))
}

open in editor

Royal Orb

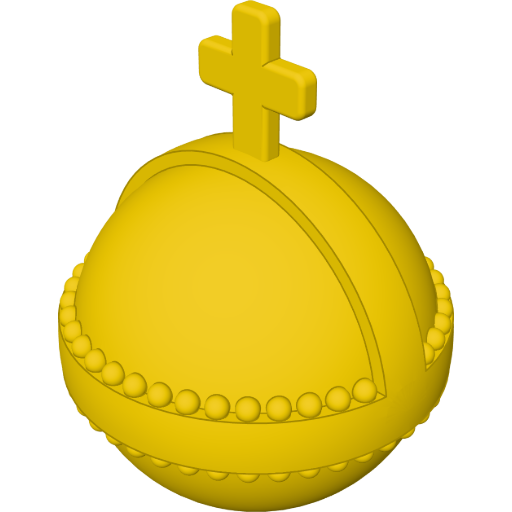

A golden ornament made from spheres, sweeping bands and rows of pearls.

def %ring { sphere 70 | cut 30 40 }
def %pearls $start {
	circular 65 19 angle 154 start $start sphere 4
}

!color gold
orb:
{
	sphere 65
  [ z center:bottom %ring
    | rotate 90 about y
    | cut 50% 100 ]
  @center %ring
  [
    @top -1 %pearls 103
    @top -1 %pearls 283
    @bottom -1
      circular 65 42 sphere 4
  ]
} | cut 5 100%

z -2
cross:
{
 block 4 8 27 | fillet 2 at parallel x
 z top:top -8 block 4 24 8 | fillet 2 at parallel x
} | fillet 1 at #left or #right

open in editor

Mug

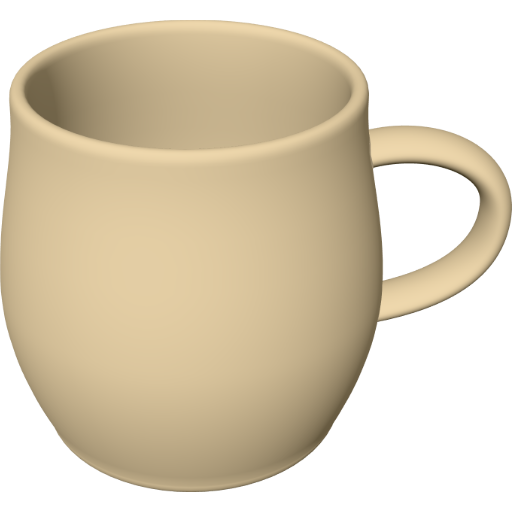

A revolved body with a rounded rim and a handle swept along a single curve.

color wheat {
  /* body: one profile for the wall, the rounded rim and the floor */
  path "M0,90 H33 Q37,90 37.5,86 C42,76 47,62 46,48 C45,30 40,18 40,3
    Q40,0 38,0 Q36,0 36,3 C36,18 41,30 42,48 C43,62 39,74 33,82 Q30,84 26,84 H0 Z" | revolve

  /* handle: a D drawn with x up the mug and y out from it, stood up by about y;
     both ends sink into the wall */
  @right -6 z bottom 27 ellipse 7 14
  | sweep along path "M42,0 C46,-14 40,-31 26,-31 C12,-31 4,-20 0,-3" about y
} | rotate -45 about z

open in editor

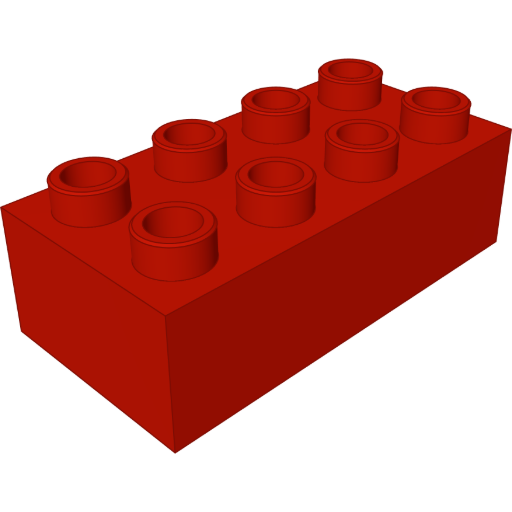

Duplo Brick

A 2×4 brick with hollow studs on top and anti-stud tubes, ribs and clutch stubs underneath.

set $pitch 16
set $length 63.8
set $width 31.8
set $height 19.15
set $wall 1.5
set $rib 1
set $rib_height 13.25
set $stub_depth 1.75

def %stud {
  tube 9.7 6.7 4.6 | chamfer 0.33 at nearest 5 0 4.6
}

color #C91A09
{
  body: block $length $width $height
  [ grid 4 2 ($pitch - 9.7) %stud ]

  cavity: @bottom -block ($length - 2 * $wall) ($width - 2 * $wall) ($height - $wall)
  [
  	!@center
    /* stiffening ribs hang from the roof */
    z top block cavity.width $rib $rib_height
    z top linear $pitch 3 block $rib cavity.depth $rib_height
    /* anti-stud tubes, bored clear of the ribs */
    z bottom linear $pitch 3 tube 13.6 11.6 cavity.height | chamfer 0.33 at nearest 7 0 0
    z bottom linear $pitch 3 -cylinder 11.6 cavity.height
    /* clutch stubs on the inside of the walls */
    y front z bottom linear $pitch 4 block $rib $stub_depth cavity.height
    y back z bottom linear $pitch 4 block $rib $stub_depth cavity.height
    x left z bottom mirror y ($pitch - $rib) block $stub_depth $rib cavity.height
    x right z bottom mirror y ($pitch - $rib) block $stub_depth $rib cavity.height
  ]
}
| chamfer 0.2 at z == 0 and (x < (0.1 - $length / 2) or x > ($length / 2 - 0.1) or y < (0.1 - $width / 2) or y > ($width / 2 - 0.1))

open in editor

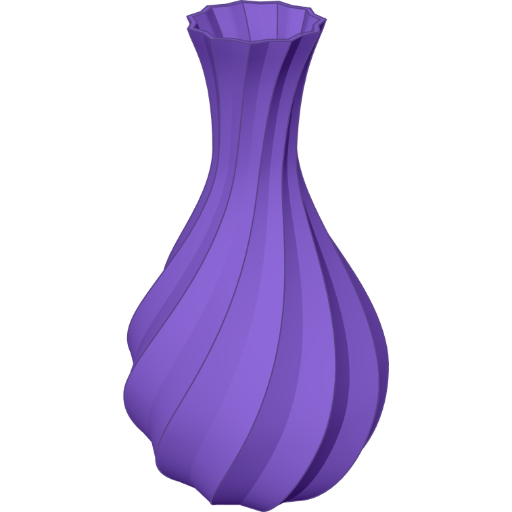

Twisted Vase

A star profile that widens along a curved outline and twists a quarter turn as it rises into a thin-walled vase.

set $vase "M0 0H28.248C31.085-2.357 46.44-13.48 46.51-39.95s-32.8-57.52-33.35-83.79 5.82-34.22 7.61-40.25H0"
set $h height(path $vase)
color mediumpurple
% $t star 11 2 1.8  | scale width(path $vase, $t * $h) | rotate (90 * $t) | extrude $h | shell 1.5

open in editor

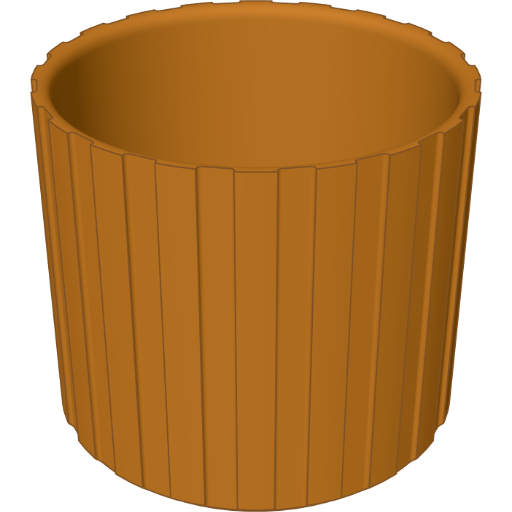

Flower Pot

A revolved profile shapes the walls, rim and base of this everyday pot.

color peru
path "M0 0H49L54-5V-96h-1Q49-96 49-92V-7L47-5H0Z" | revolve
[ circular 113 20 -block 8 8 100 | fillet 1 at parallel z ]
@bottom -cylinder 15 20

open in editor

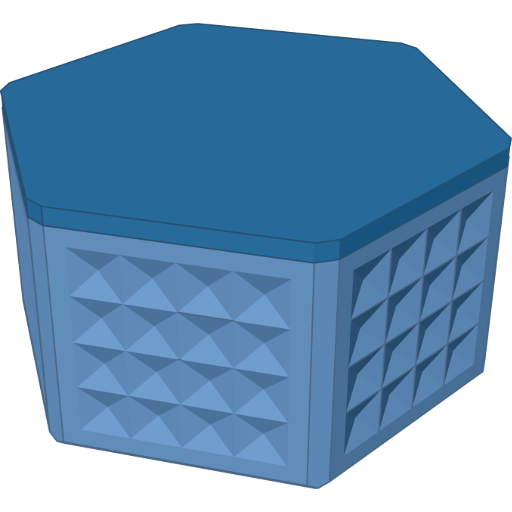

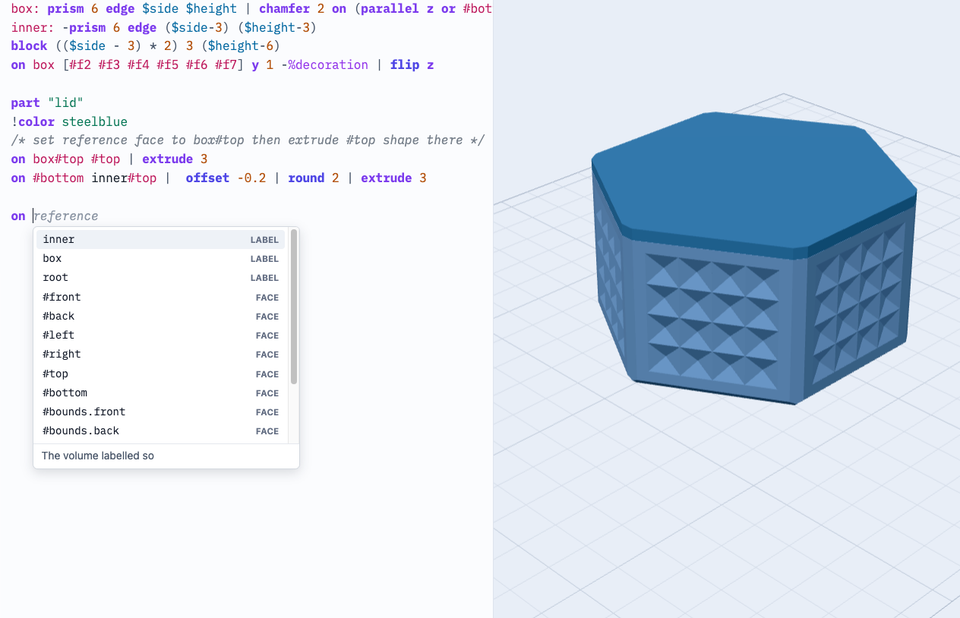

Jewelry Box

A chamfered hexagonal box studded with rows of pyramids, topped by a lid that fits its inner wall.

set $side 42
set $height 40

def %decoration {
	grid (floor($side/8) - 1) (floor($height/8) - 1) pyramid 4 edge 8 1.5
}

part "box"
box: prism 6 edge $side $height | chamfer 2 at (parallel z or #bottom)
inner: -prism 6 edge ($side-3) ($height-3)
block (($side - 3) * 2) 3 ($height-6)
on box [#f2 #f3 #f4 #f5 #f6 #f7] y 1 -%decoration | flip z

part "lid"
!color steelblue
/* set reference face to box#top then extrude #top shape there */
on box#top #top | extrude 3
on #bottom inner#top |  offset -0.2 | round 2 | extrude 3

open in editor

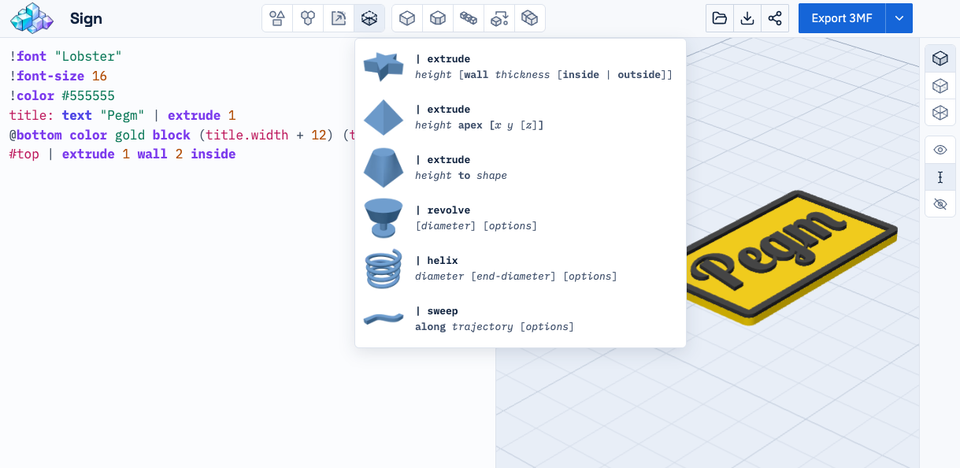

Six Seven

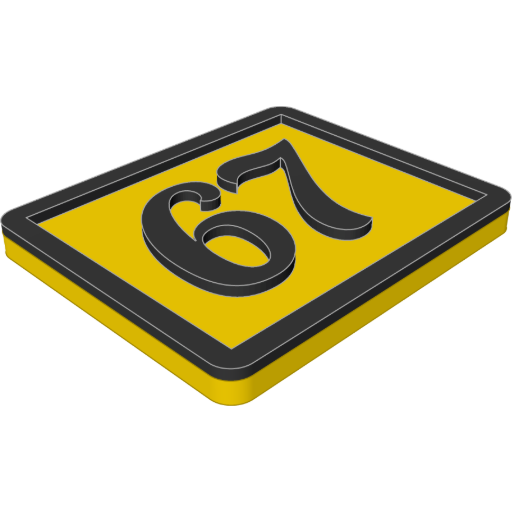

Raised numbers in a Google font on a rounded plate, framed by a rim that follows its outline.

set $gap 12
set $text "67"

/* references  Google Fonts, try eg. !font "Fontdiner Swanky" 400 */
!font "Lobster" 400
!font-size 16
!color black

title: text $text | extrude 1
@bottom color gold block (title.width + $gap) (title.depth + $gap) 2
  | fillet 2 at parallel z
#top | extrude 1 wall 2 inside

open in editor

SIM Adapters

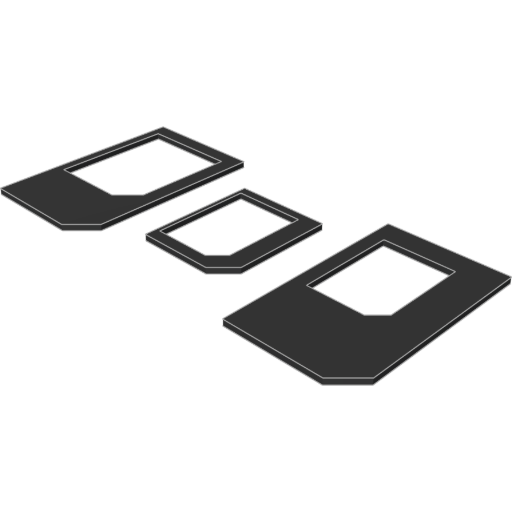

Three flat plates that step a SIM card up a size, each with a chamfered pocket cut to fit the smaller card.

set $thick 0.76   /* SIM card thickness */
set $fit 0        /* extra clearance around the inserted card */
!@front 5       /* spacing between the printed plates */

/* pocket position, measured in from the outer card's right and back edges */
set $microRight 1.9
set $microBack 1.2
set $nanoRight 1.15
set $nanoBack 0.54

/* card outline with the orientation chamfer on the front-left corner */
def %card $w $d $c polygon points [$c 0] [$w 0] [$w $d] [0 $d] [0 $c] | round 0.1

def %mini %card 25 15 3
def %micro %card 15 11.8 2.5
def %nano %card 12.3 8.8 1.75

!color black

part "Micro to Mini"
%mini | extrude $thick [
  on #top x right -$microRight y back -$microBack -%micro | offset $fit | extrude $thick
]

part "Nano to Micro"
%micro | extrude $thick [
  on #top x right -$nanoRight y back -$nanoBack -%nano | offset $fit | extrude $thick
]

part "Nano to Mini"
%mini | extrude $thick [
  on #top x right (-$microRight - $nanoRight) y back (-$microBack - $nanoBack) -%nano | offset $fit | extrude $thick
]

open in editor

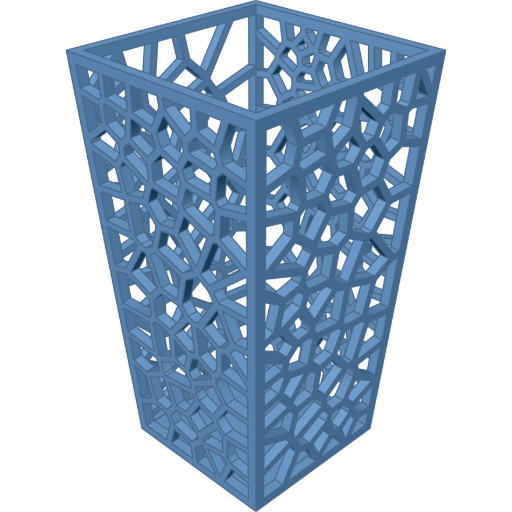

Voronoi Vase

A tapered, hollow vase whose walls are cut into a random lattice of Voronoi cells.

rect 50 50 | extrude 120 apex [0 0 -370] | shell 3 [
  on #f2 -voronoi 2 cells 60 seed 6 rim 3 in #f2 | extrude 3
  on #f3 -voronoi 2 cells 60 seed 2 rim 3 in #f3 | extrude 3
  on #f4 -voronoi 2 cells 60 seed 3 rim 3 in #f4 | extrude 3
  on #f5 -voronoi 2 cells 60 seed 7 rim 3 in #f5 | extrude 3
]
